ISA10416

16-Bit ISA Bus to PC/104 Bus Adapter

ISA10416
ISA10416 Product Photo ISA10416 Develpment Process ISA10416 Develpment Process

  • Stock Number:

  • 100-7559

  • Budgetary Pricing:

  • $109.00 / 001 - 009
  • Contact us for More Quantity Discounts

  • Typical Lead-Time:

  • Stock - 2wks

  • get quote

DESCRIPTION

The ISA10416 is a half-size ISA adapter card that allows 8 and 16 bit PC/104 modules to be developed, tested and used in a standard ISA bus (i.e.; legacy desktop style) computer.

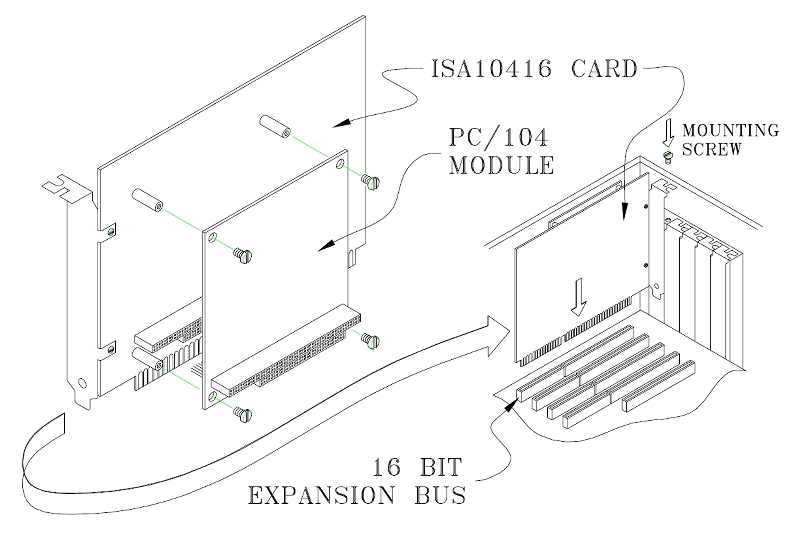

In operation, a PC/104 module is installed on the ISA10416 card and the card is then inserted into an available 16-bit slot within the PC ISA host. No special drivers or other considerations are necessary for the users programs to access and operate the installed PC/104 module.

The ISA10416 transparently performs a direct bus-to-bus conversion and operates at the full speed of the PC ISA host. All the facilities of the host computer are available to the PC/104 module including memory and I/O operations, DMA, and interrupts. A prototyping area is provided for the construction of experimental and application specific circuitry.

FEATURES

  • Allows ISA bus computers to use 8 and 16 bit PC/104 modules
  • No special drivers required
  • Transparently converts ISA bus to PC/104 bus
  • Compact half-size card
  • Supports all memory, I/O, DMA, and interrupt operations
  • Stack multiple PC/104 modules on same ISA10416 card
  • Onboard prototyping area
  • Gold-Plated edge connections for reliable operation

DOCUMENTATION

SPECIFICATIONS

Bus Interface:All ISA card edge signals are routed to their corresponding PC/104 J1 and J2 connector counterparts. The self-stacking nature of the PC/104 bus allows multiple modules to be used at the same time, limited only by the space available within the host computer
Mechanical:4.50"H x 7.00"L
Environmental:Operating temperature: -40°C to 85°C
Non-condensing relative humidity: 5% to 95%
CA Residents: Warning - Prop 65 Info
Product Origin:Designed, Engineered, and Assembled in U.S.A. by SCIDYNE Corporation using domestic and foreign components.
