Analog and Digital in one PC/104 Module
Model: ADIO-104 (Stock #100-7638)
Our ADIO-104 provides the most requested functions in a single low-cost board.
-
Standard Features Include
- Eight 12-bit Analog Outputs
- Sixteen 12-bit Analog Inputs
- 24 Digital I/O
- Four MOSFET Outputs
- 8-Bit Pulse Accumulator
- +5V Only power requirement
SCIDYNE Sponsors Team 3927 in this years
First Robotics Competition
First Robotics Competition
SNAPTRACK
Easily mount circuit boards and assemblies on this non-conductive PVC channel. Available in
several standard widths to match your application. Use the optional clips for DIN rail mounting.

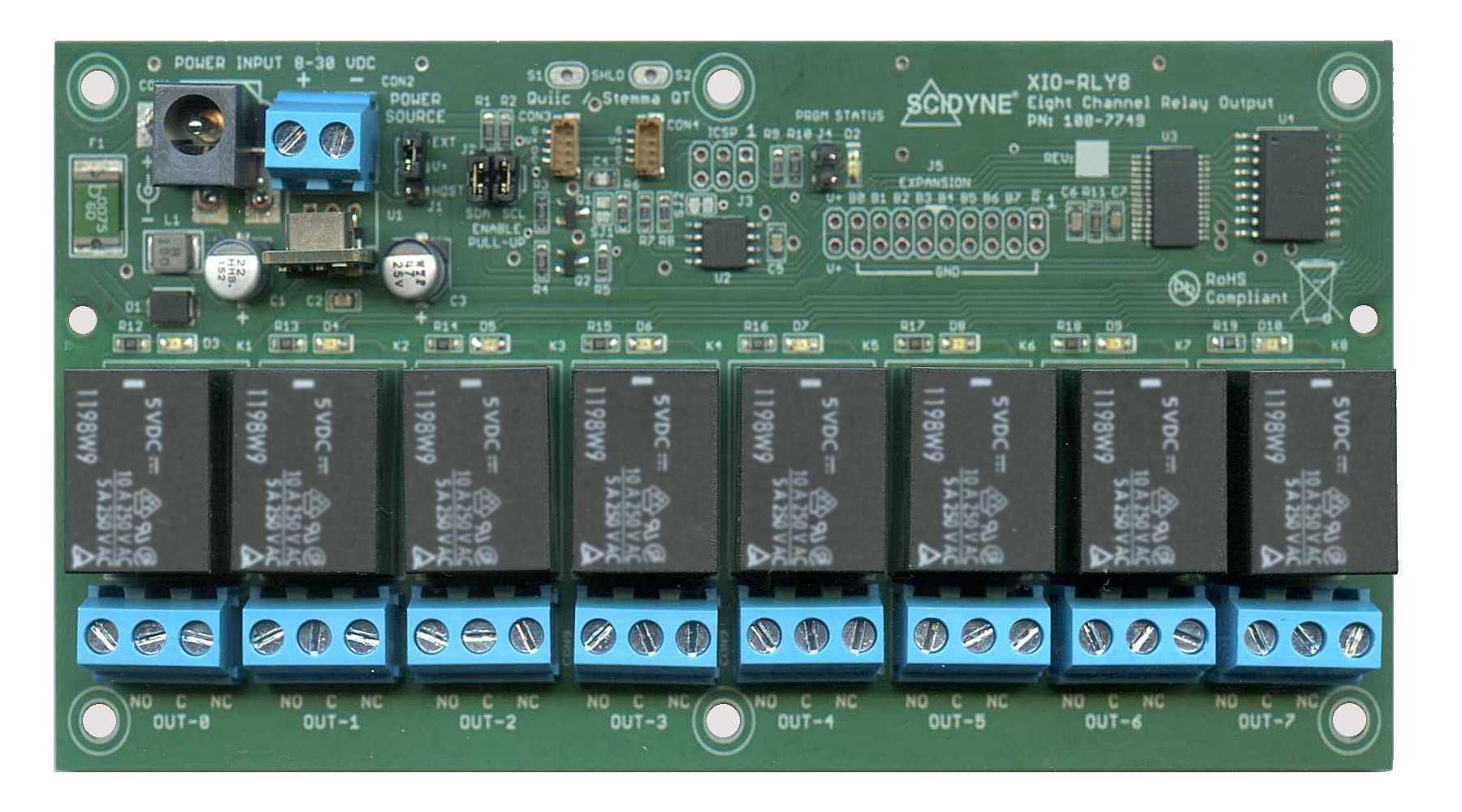

Control High-Power Loads From Logic Level Signals
Model: XIO-RO8 (Stock #100-7632)
Add muscle to your logic. Eight 10A form-C relay outputs provide ample power to control AC and DC loads. On-board buffering and electrical isolation makes using this board suitable for practically any application. Use with other XIO family boards to meet your exact requirements.
Add muscle to your logic. Eight 10A form-C relay outputs provide ample power to control AC and DC loads. On-board buffering and electrical isolation makes using this board suitable for practically any application. Use with other XIO family boards to meet your exact requirements.
High-Density Digital I/O Module for PC/104 Bus
Model: DIO96-104 (Stock #100-7618)
96 Bits of Digital I/O organized as four
24-bit groups
96 Bits of Digital I/O organized as four
24-bit groups
-
Standard Features Include
- 96 Digital Input/Output channels
- Uses 82C55A chips
- Input, Output and Strobed Operations
- Low-Power CMOS Design
- Single +5 Volt Power Requirement
